Model EL150 Full View Frameless by Elegant

Full View Frameless

Aluminum Becoming Contemporary Los Angeles’ Biggest Selling Custom Garage Door

The EL 150 Aluminum garage door is a frameless looking glass and aluminum door that is revolutionizing the Los Angeles custom garage door industry. Elegant Custom Garage Door & Gate were one of the first companies to design, and install these high end contemporary looking custom garage doors.

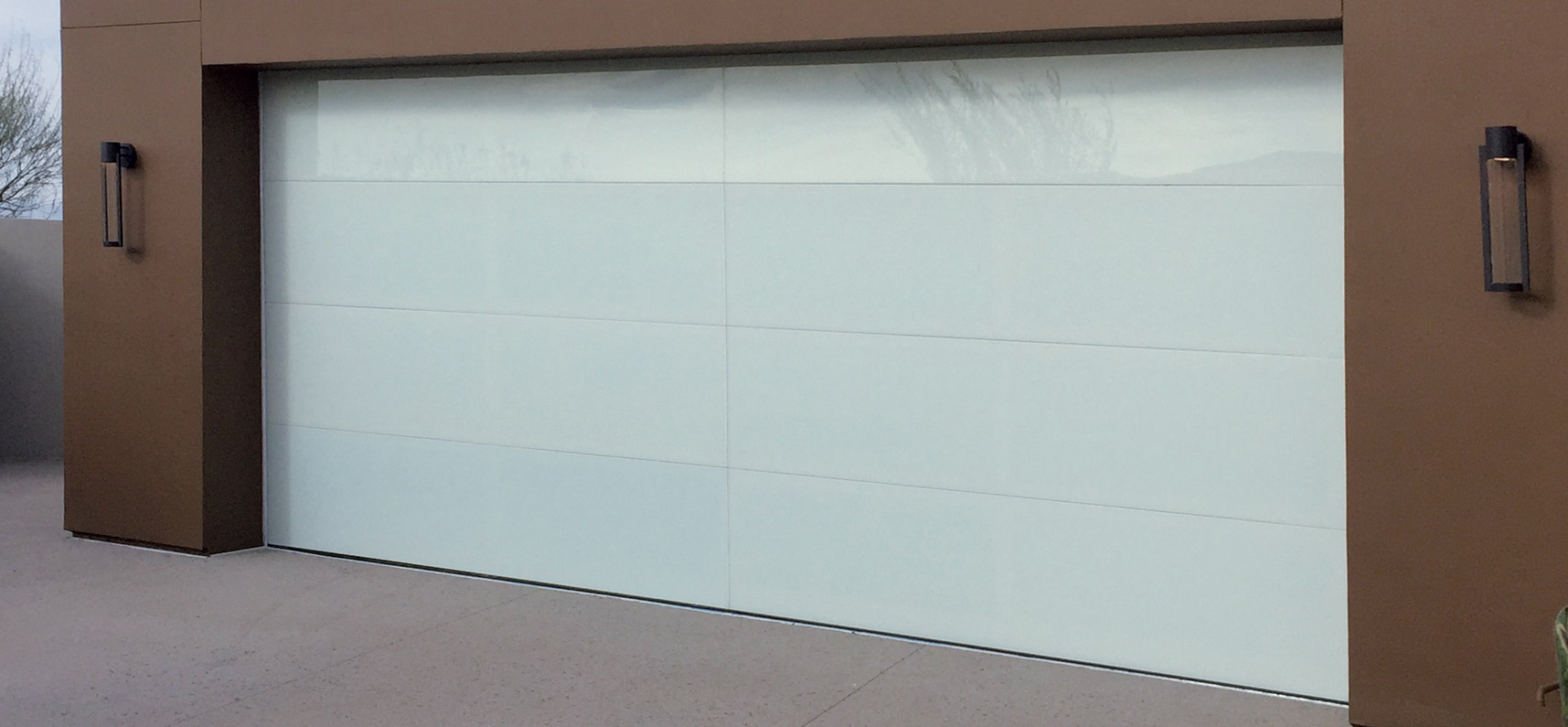

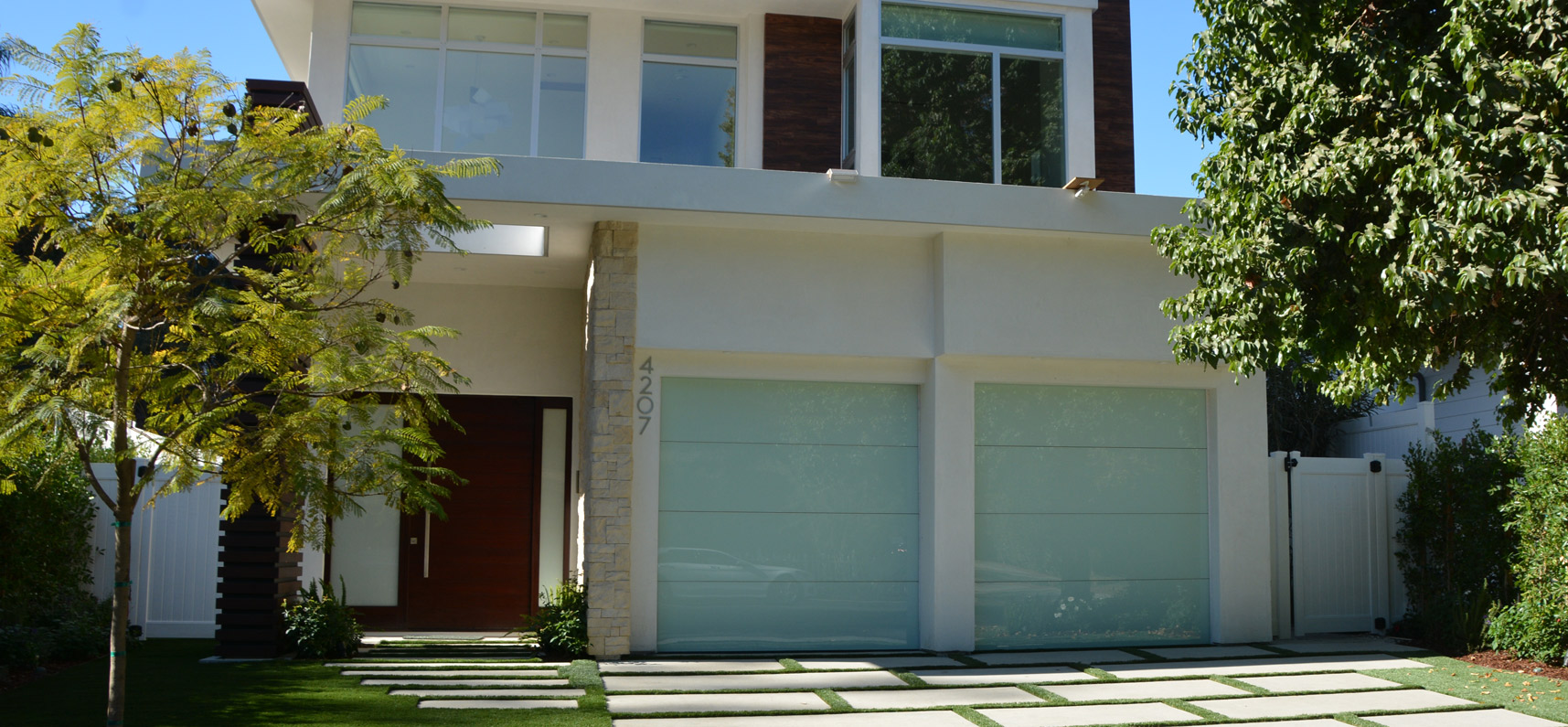

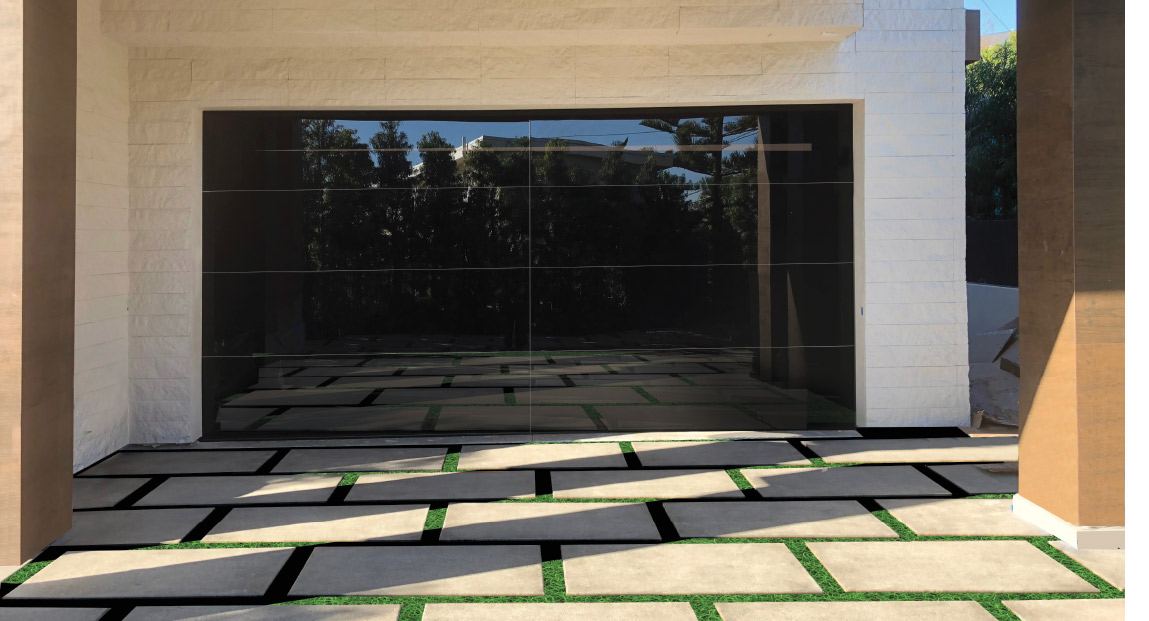

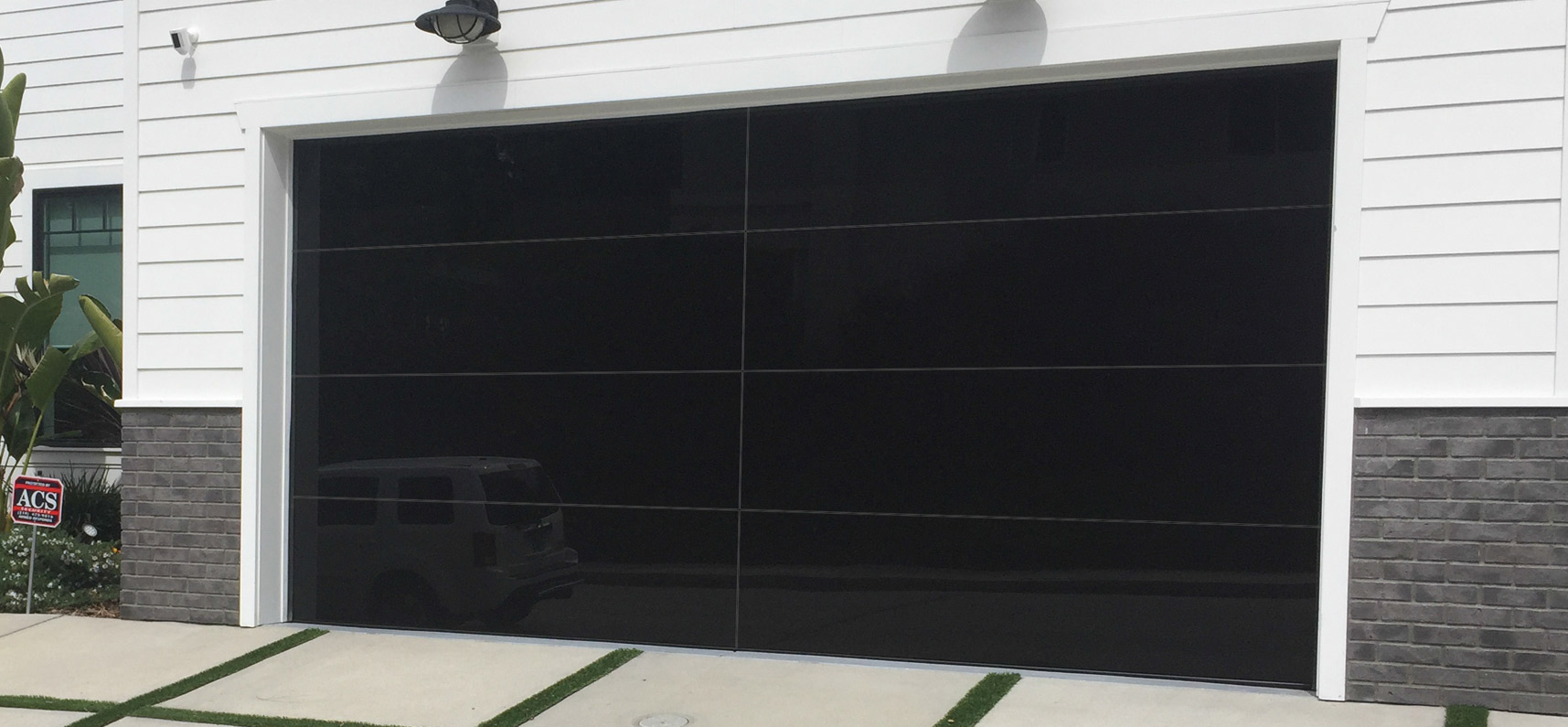

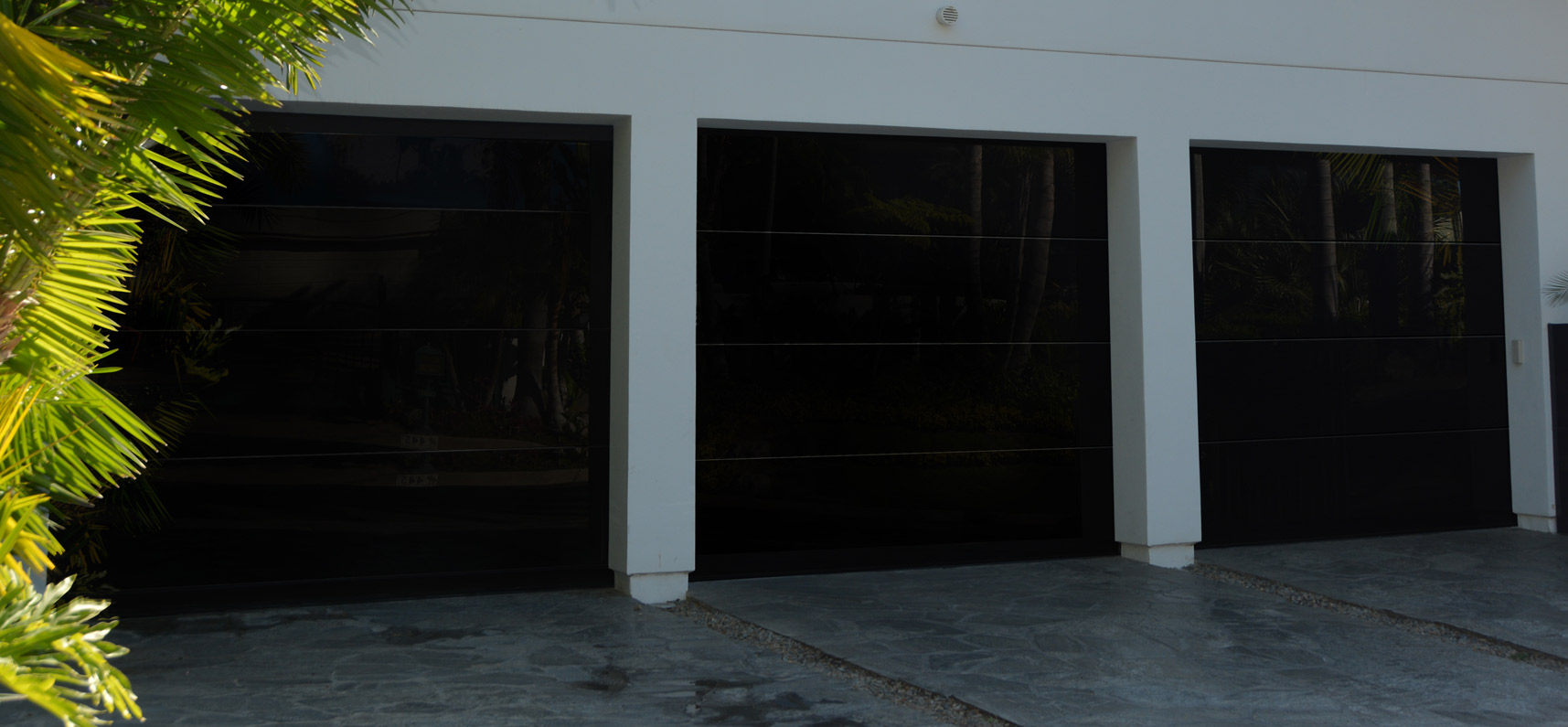

Sporting a modern, sleek, and stylish look the EL 150 Aluminum consists of usually mirrored or opaque glass panels that are seamlessly attached to a fully aluminum frame. This gives the whole door a thoroughly contemporary and modern look, that is hard to beat, and will add instant curb appeal once fully installed.

With sales of the EL 150 Aluminum custom garage door soaring, we are now Southern California’s market leader in supplying these ultra modern garage doors to residences all over Los Angeles.

Elegant Guarantee

At Elegant we provide quality craftsmanship that will last for years to come.

Design Options

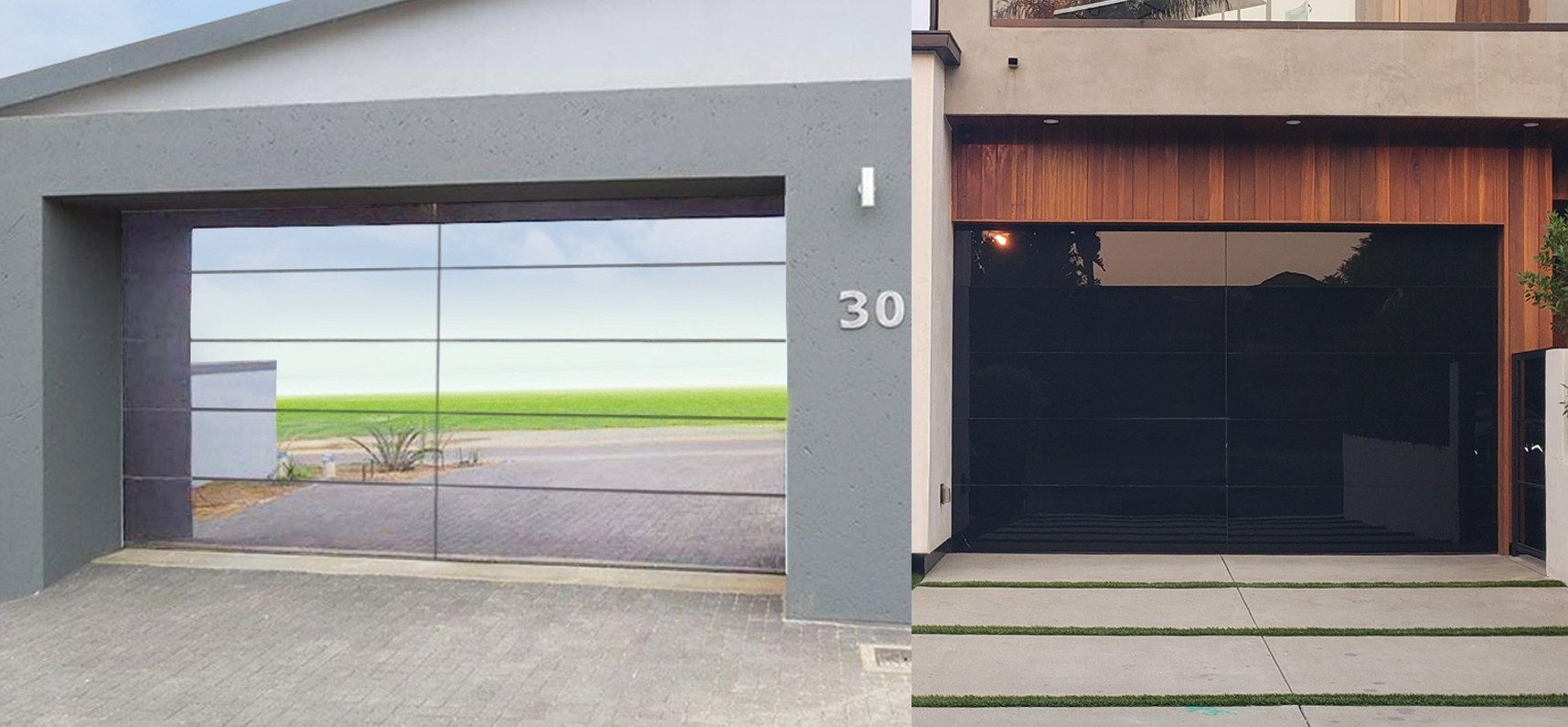

One Car Design: Two Car Design:

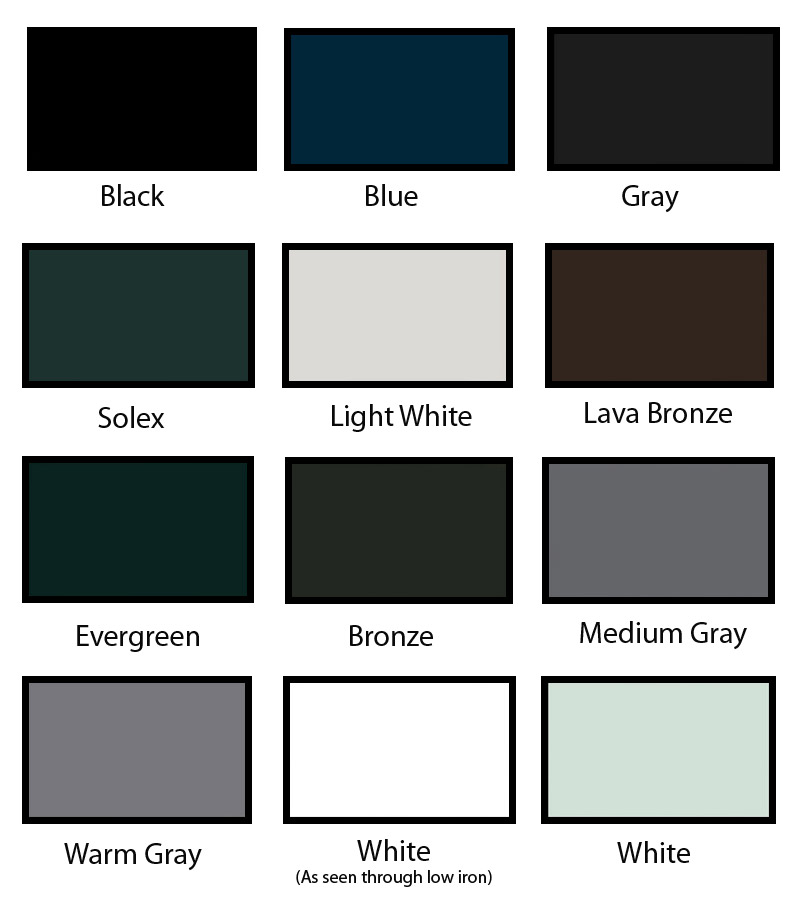

Glass Options - Opaque

Choose your Full View Frameless options. We have a large assortment of Opaque colors, everything from blue and evergreen to a traditional white or black, to make your new door look spectacular.

Glass Options - Translucent

Choose Reflective Black for a tasteful Translucent glass coating.

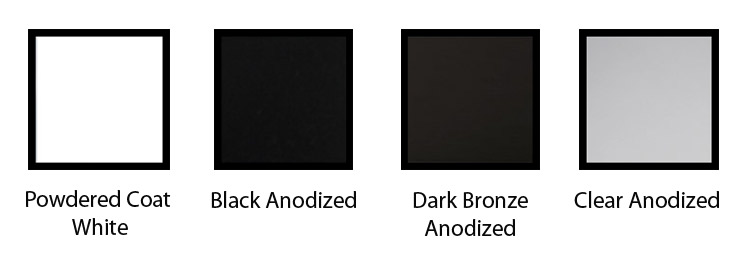

Frame Finishes - Powdered Coat and Anodized

Finally choose one of our frame finishes. If powdered coat is your preference, we have a traditional white coming soon. Or you can select from any of our three anodized options: black, dark bronze and clear.

Full View Frameless Specifications

Material: 1-3/4" thick extruded 6063-T6 non corrosive commercial-grade
Sections: Height of section determined by height of door
Top rail width - 4-5/8"
Bottom rail width - 4-5/8"
Combined intermediate rail widths - 4-1/4"
Center stile width - 2-7/8" End stile width- 4-5/8"
Section Joints: Standard tongue & groove
Assembly: Stiles are through bolted to the rails added rigidity and strength
Maximum door width: 18ft
Maximum door height: 14ft.

Finish

Aluminum is sent through a chemical process that leaves it with an extremely durable anodizing finish

Glass

Glass Size Capabilities: Three options of glass thickness available 1/8" / 1/4" / 1/2"
Standard Options: Clear Tempered / Frosted Tempered / White Laminate

*Please Note: All glass is tempered except for laminated options.

Glazing is completed using a butyl tape that adheres the glass to the frame and provides a high quality seal
Aluminum retainers are snapped in place with a 1/4" EPDM round foam strip between the glass and aluminum retainer acting as another seal and impact dampener

Track

All 2" tracks are 12" or 15" Radius - 14 gauge horizontals with 17 gauge verticals
All tracks are mounted with reverse continuous jamb angle
Horizontals are reinforced with 13 gauge angle mounted continuous to the length of the horizontal
All 3" tracks are 15" Radius - 12 gauge and use is determined by weight of door
Options: Low Headroom (0" or 3.5" ), High Lift, Vertical Lift, Follow the Pitch

Hardware

All components are galvanized steel and consist of 14 gauge hinges, 12 gauge top & bottom fixtures
2" nylon 10 ball bearing rollers with long-stem for top & bottom fixtures and short-stem for hinges
Inside lock included

Counterbalance

Springs are oil tempered and calibrated per door weight, size and track requirements
Standard springs are 10,000 cycle
25k, 50k, 100k cycle springs are available with an additional cost.
12 guage bearing & spring plates
16 gauge torsion tube is standard, 14 gauge, 11 gauge and solid shafts are available and used when specified

Struts

(2) 22GA 2-1/4" galvanized steel struts come with every door, 3" when specified

Weather Seal

4" bulb type bottom weather-seal is standard, 6" available at additional cost

Warranty

Limited 2 year warranty against cracking, chipping and or fading of the anodized or powder coat finish; limited 1 year warranty on hardware and components.

Model EL150 Full View Frameless
