ELEGANT RAIL & STILE DOORS
Our rail & stile wood doors are built for the traditionalist. Constructed using the mortise and tennon style system, the rail & stile door comes in a select few standard options like long or short panel, raised or recessed panel and each option is available in paint grade or stain grade. Available in a selection of premium woods such as Hemlock, Western Red Cedar and Mahogany. The rail & stile door is sure to add a warm, deep richness to the exterior of your home.

Elegant Guarantee

At Elegant we provide quality craftsmanship that will last for years to come.
DOOR STYLES

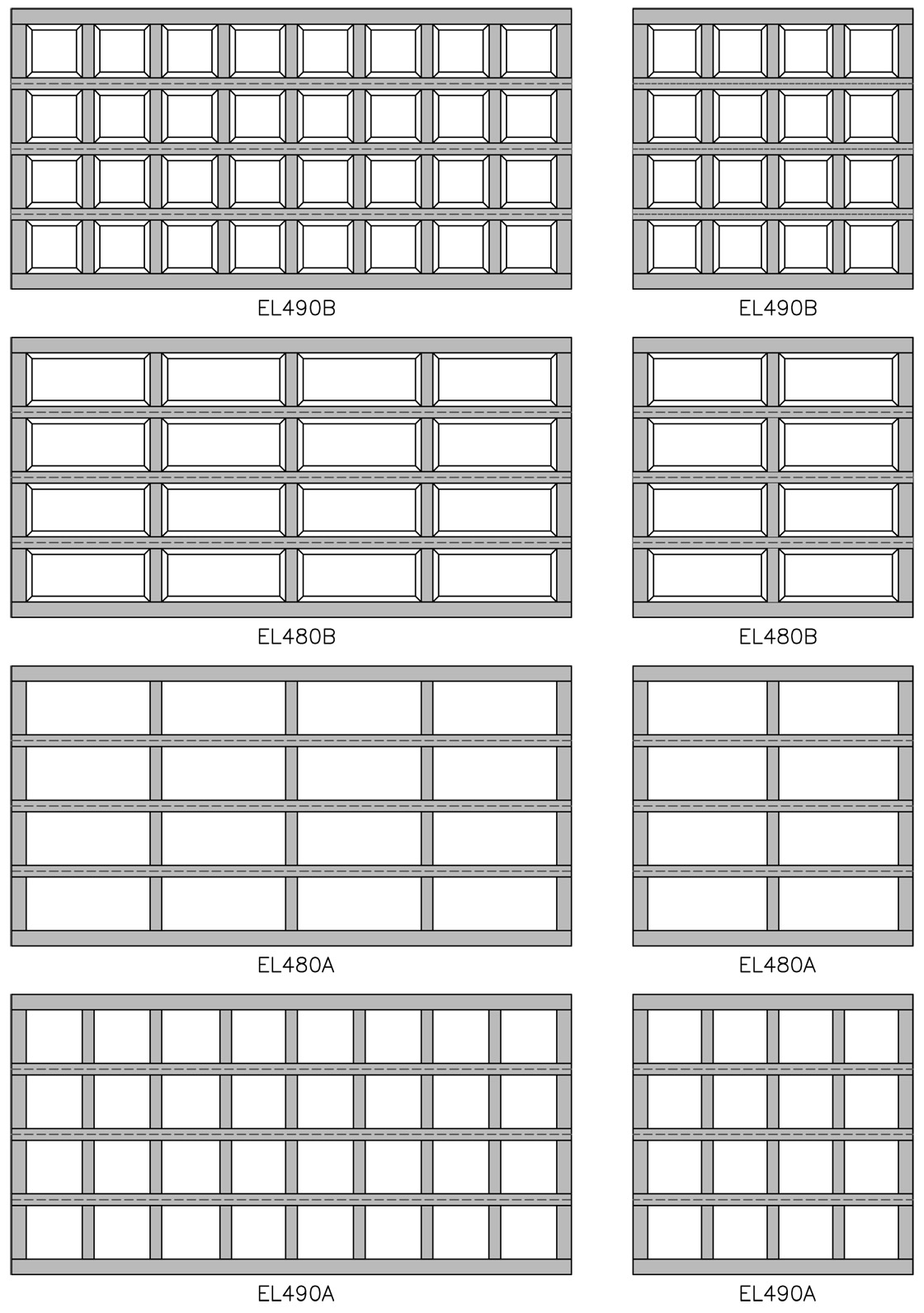

Panel Styles

Window Styles

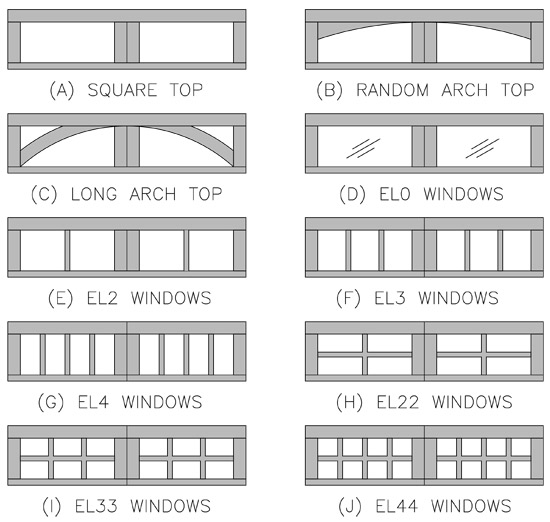

Window Styles
  • 1/8” Clear Double Strength Billet Glass
  • Many other types of glass are available including insulated options
  • 2” Wide Mullions
  • Faux Divide is standard
  • True Divide (Thru and Thru) available

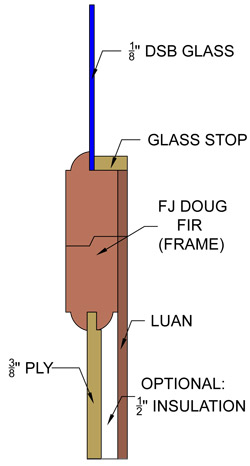

RAIL & STILE SPECIFICATIONS

2 Layer Door

Paint Grade (primed white)

  • Back (layer 1): 1 4" Luan
  • Frame (layer 2): 1- 3 8" FJ(FInger Joint) Hem Fir Deep Plowed
  • Insulation: 1 2" Polystyrene is optional and considered an upgrade
  • Panels (option 1): 3 8" Baltic Birch recessed panels
  • Panels (option 2): 1 2" Extira raised panels
  • Stiles: Single center stiles

Stain Grade (unfinished)

  • Back (layer 1): 1 4" Luan
  • Frame (layer 2): 1- 3 8" Clear Vertical Grain Hemlock Deep Plowed
  • Insulation: 1 2" Polystyrene is optional and considered an upgrade
  • Panels (option 1): 3 8" Aquatek Marine Ply recessed panels
  • Panels (option 2): 5 8" Edge-Glued Hemlock raised panels
  • Stiles: Single center stiles

Frame Material

Clear Western Red Cedar or Mahogany

Options

  • Frame (Layer 1): Hemlock (standard), Cedar, and Mahogany
  • Panels: Hemlock (standard), Cedar, and Mahogany
