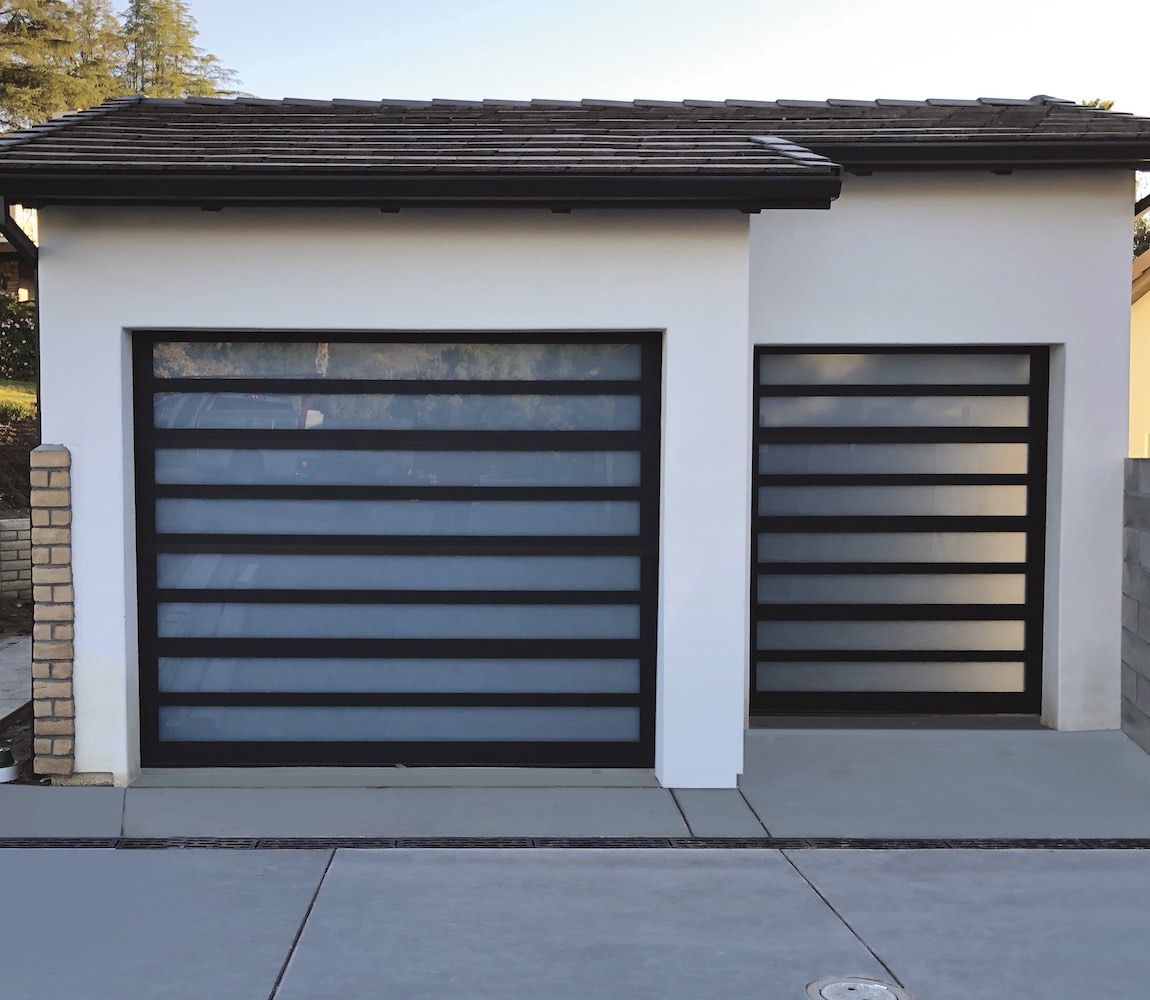

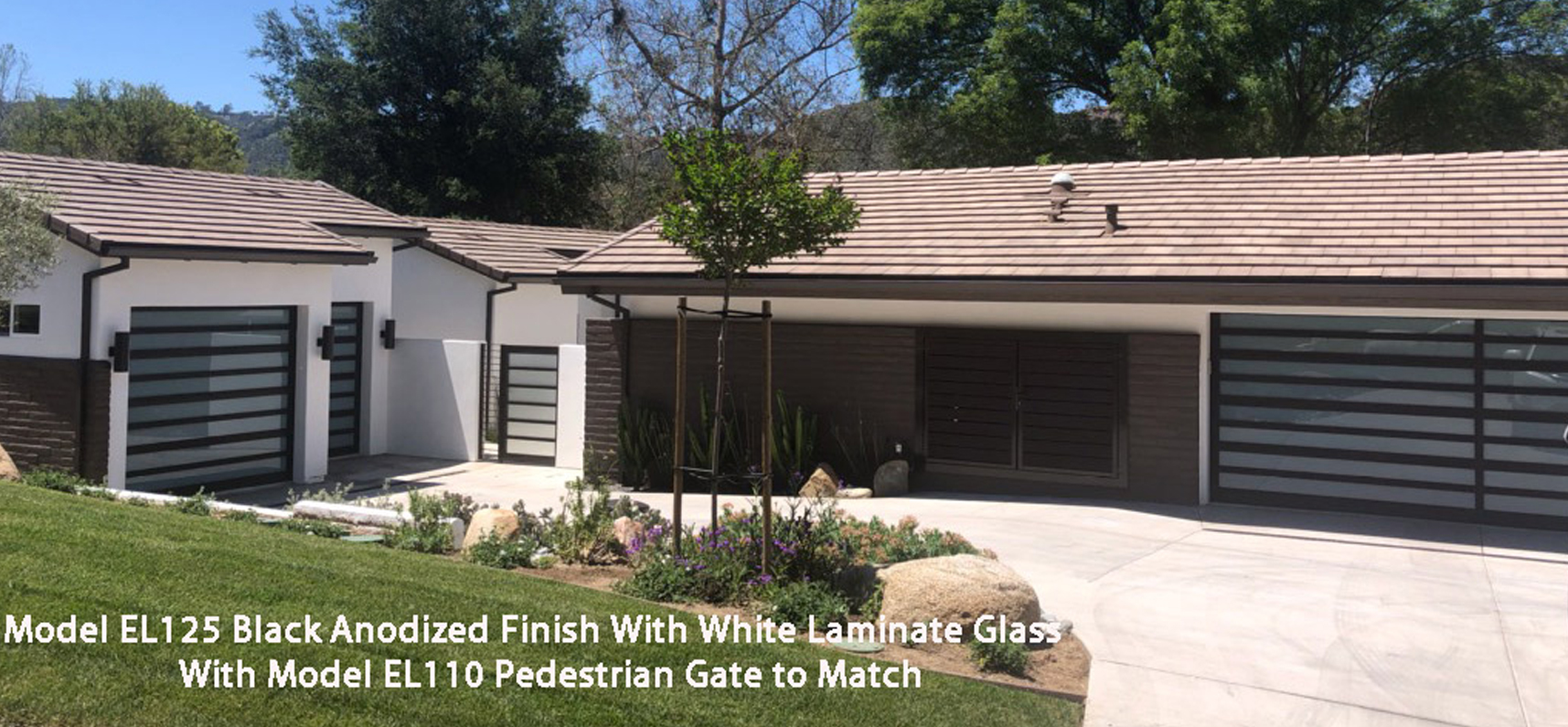

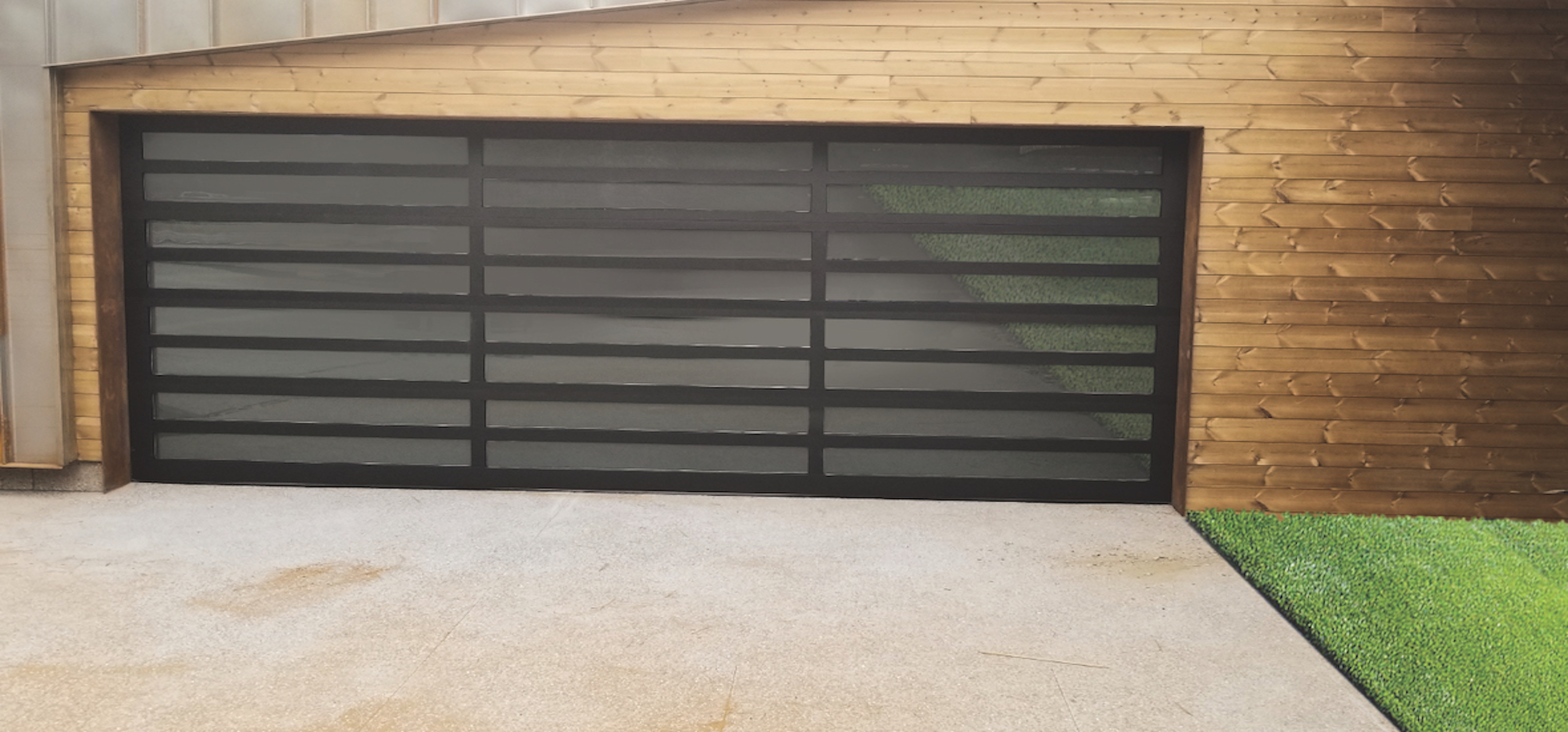

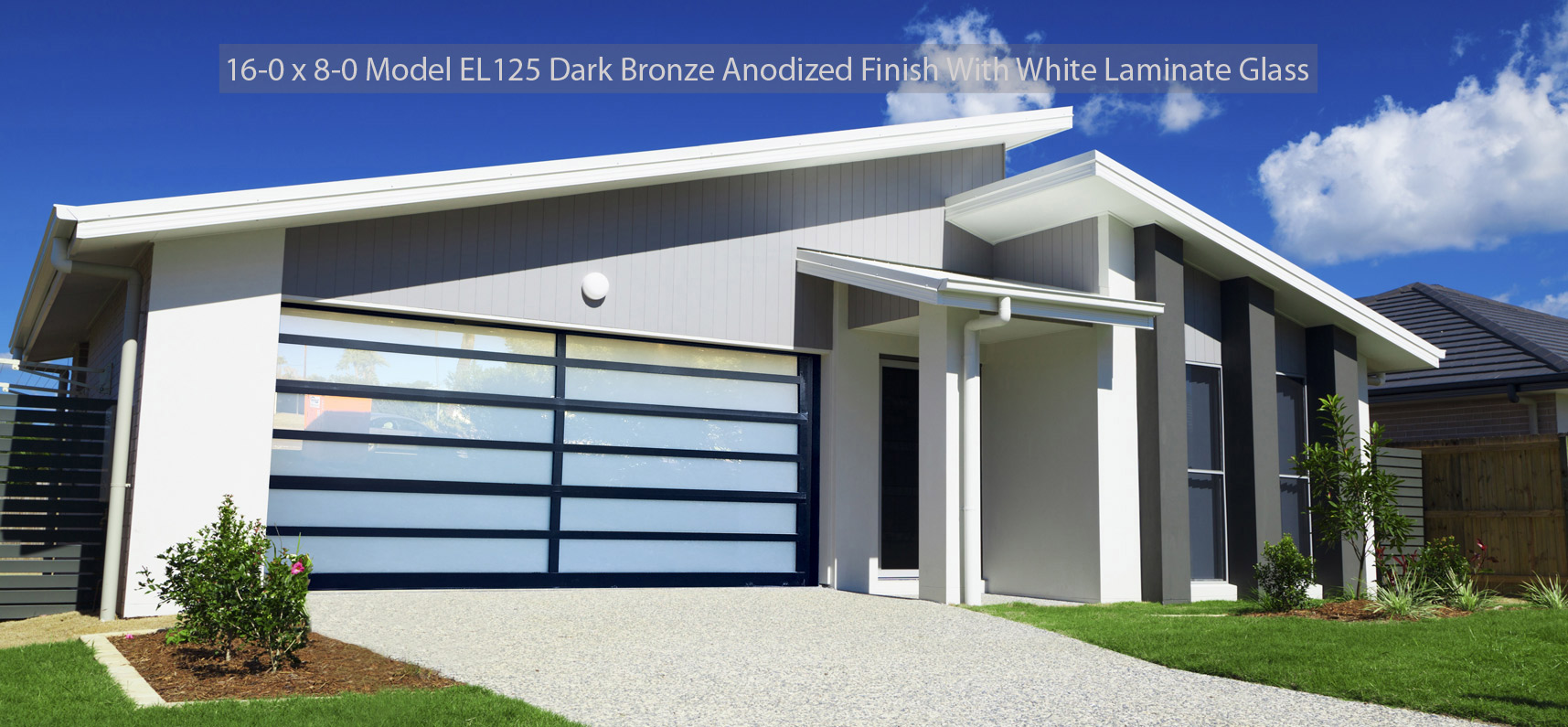

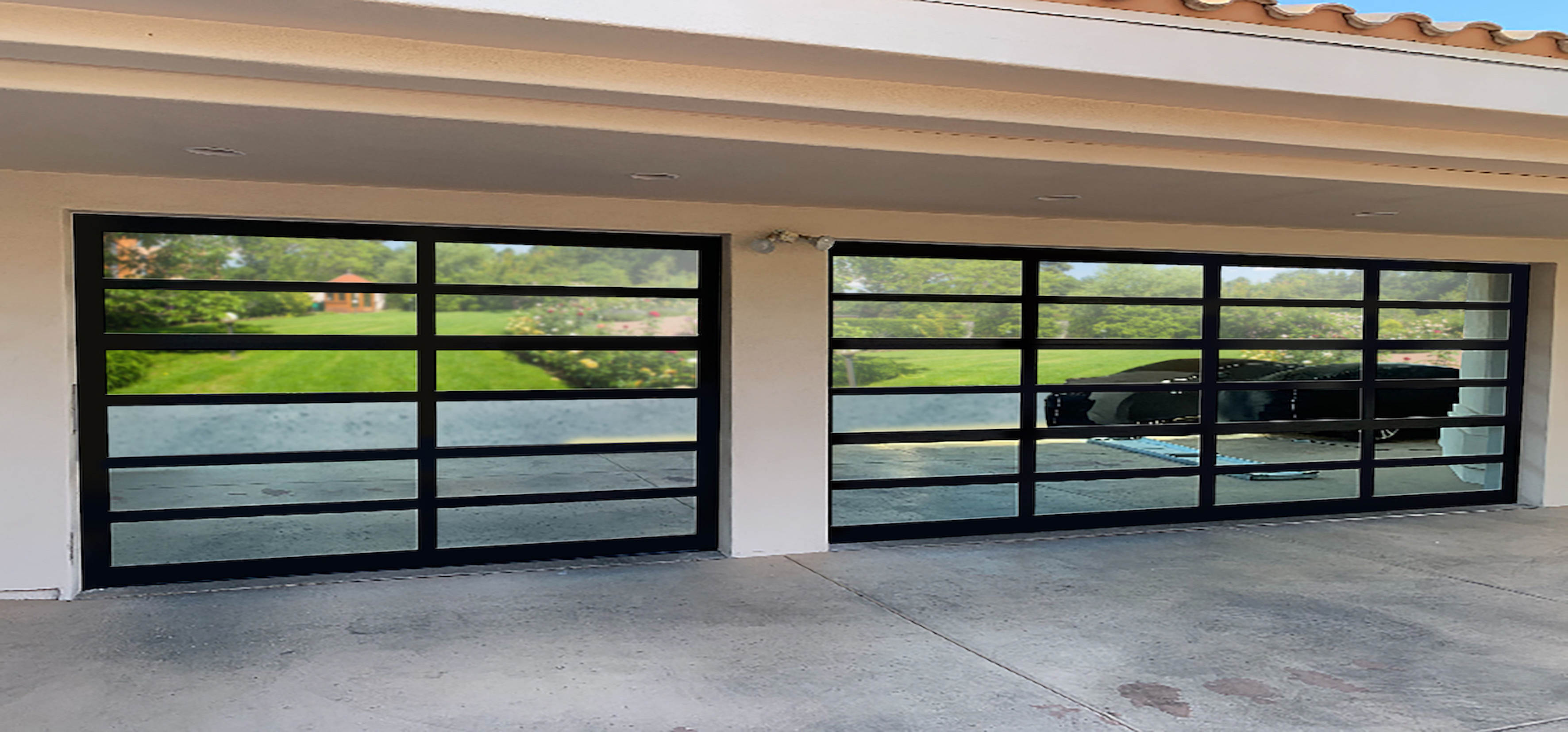

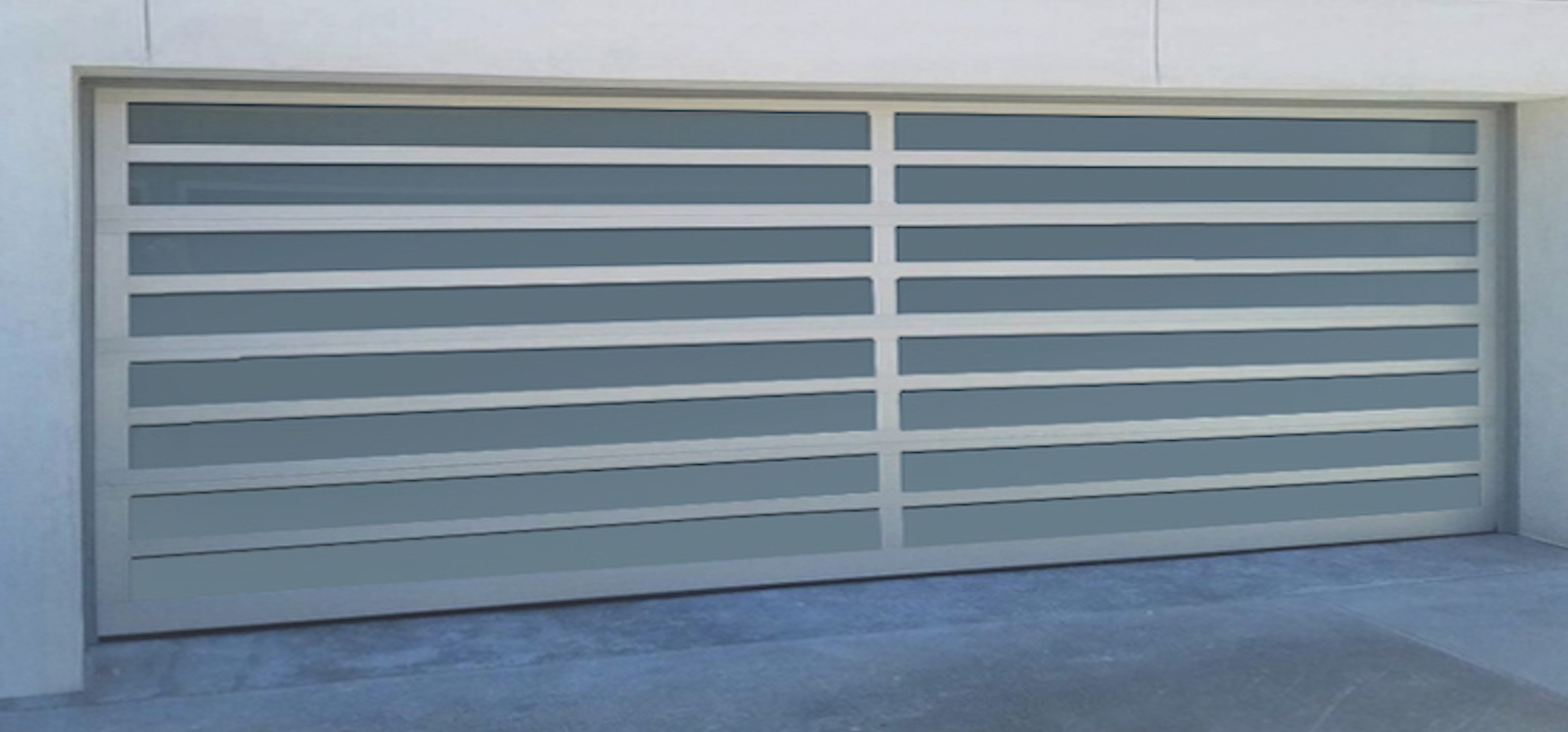

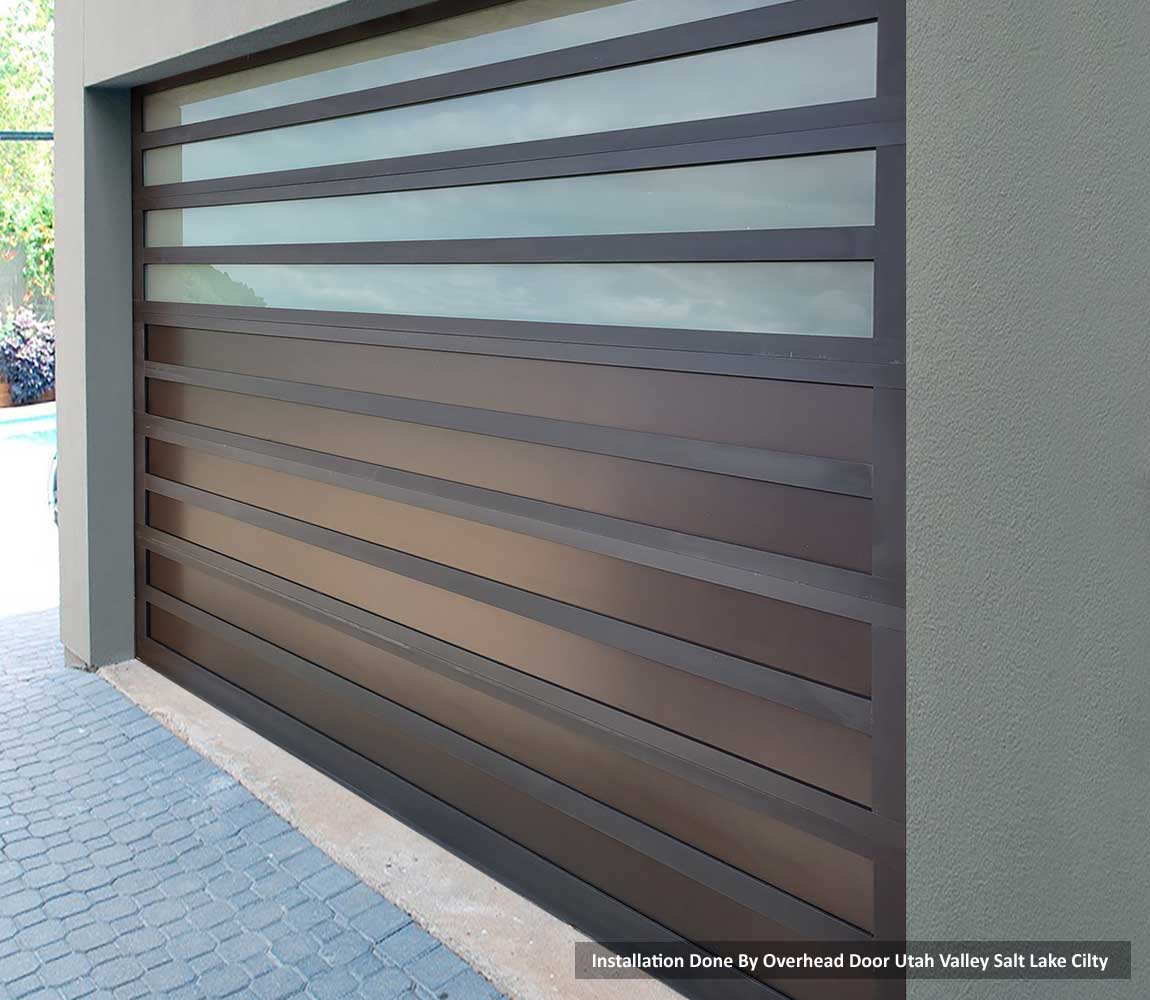

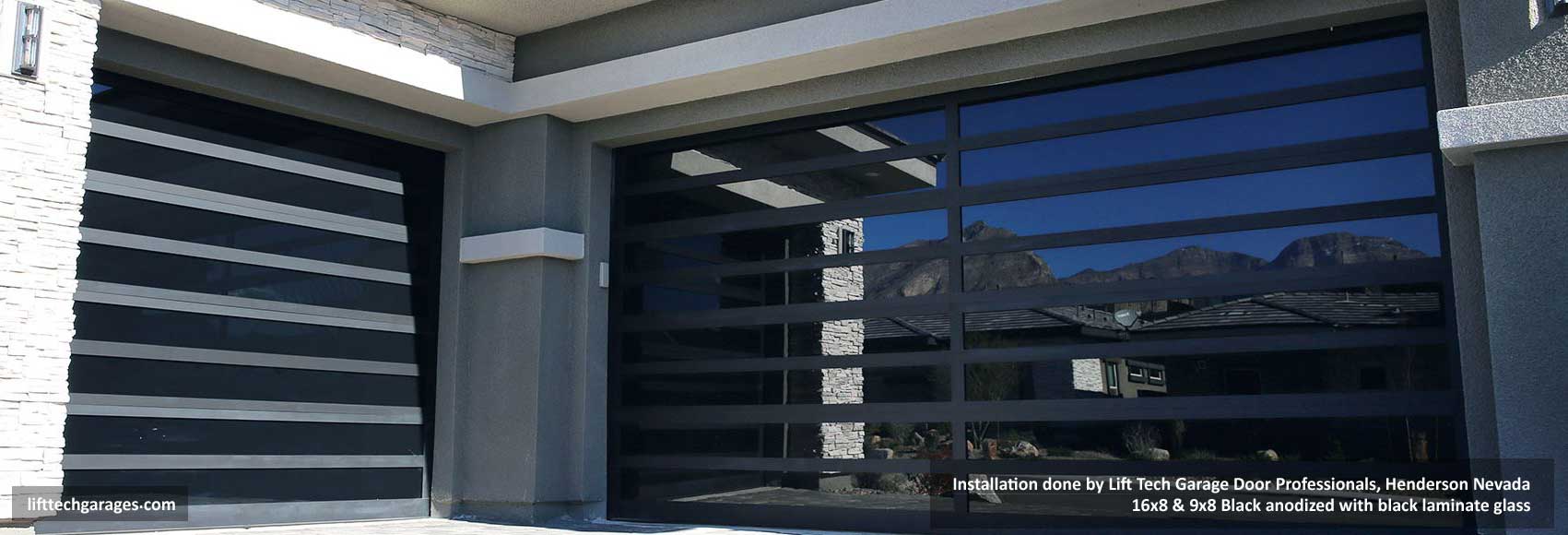

Model EL125 Contemporary Aluminum Garage Doors

EL125 Contemporary Aluminum

The Elegant EL125 is a stylish modern door that is perfect for anyone. These doors have clean square edges, flawless finishes and a large visible glass area customizable to each home. Whether you are looking to increase the curb appeal of your home or compliment the design of a new home that the architect envisioned, the EL125's edgy contemporary look is the right choice for you.

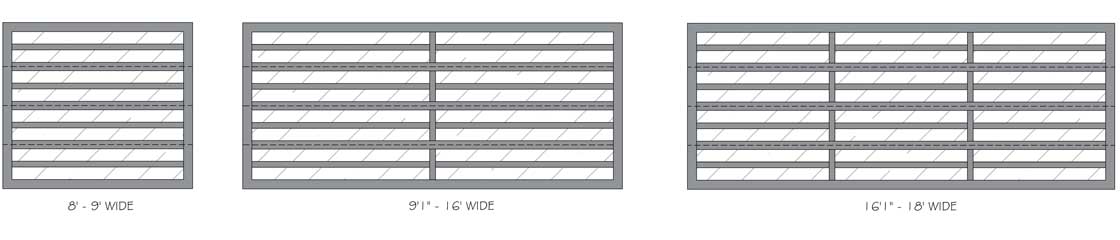

EL125 Panel Configurations

Choose Your Panel Standard:

Choose Your Panel Standard:

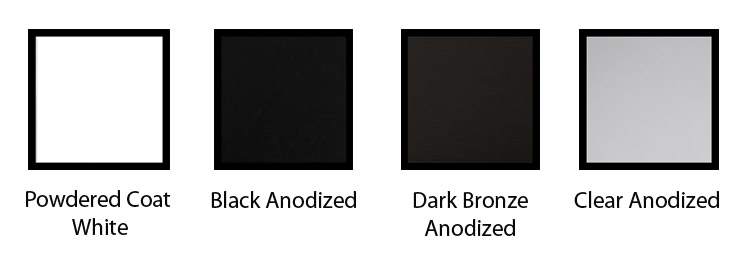

EL125 Color

Choose from a selection of over 100 different powder coats here...


Door Frame

  • Material: 1-3/4" thick extruded 6063-T6 non corrosive commercial-grade
  • Sections: Height of section determined by height of door
  • Top rail width - 4-5/8"
  • Bottom rail width - 4-5/8"
  • Combined intermediate rail widths - 4-1/4"
  • Center stile width - 2-7/8" End stile width- 4-5/8"
  • Section Joints: Standard tongue & groove
  • Assembly: Stiles are through bolted to the rails added rigidity and strength
  • Maximum door width: 18ft
  • Maximum door height: 14ft.


  • Aluminum is sent through a chemical process that leaves it with an extremely durable anodizing finish


  • Glass Size Capabilities: Three options of glass thickness available 1/8" / 1/4" / 1/2"
  • Standard Options: Clear Tempered / Frosted Tempered / White Laminate
  •   *specialty glass available upon request to match a style of your home

              *Please Note: All glass is tempered except for laminated options.

  • Glazing is completed using a butyl tape that adheres the glass to the frame and provides a high quality seal
  • Aluminum retainers are snapped in place with a 1/4" EPDM round foam strip between the glass and aluminum retainer acting as another seal and impact dampener


  • All 2" tracks are 12" or 15" Radius - 14 gauge horizontals with 17 gauge verticals
  • All tracks are mounted with reverse continuous jamb angle
  • Horizontals are reinforced with 13 gauge angle mounted continuous to the length of the horizontal
  • All 3" tracks are 15" Radius - 12 gauge and use is determined by weight of door
  • Options: Low Headroom (0" or 3.5" ), High Lift, Vertical Lift, Follow the Pitch


  • All components are galvanized steel and consist of 14 gauge hinges, 12 gauge top & bottom fixtures
  • 2" nylon 10 ball bearing rollers with long-stem for top & bottom fixtures and short-stem for hinges
  • Inside lock included
  •  *Please Note: 11 gauge components and 3" steel 10 ball bearing rollers will be used when specified.


  • Springs are oil tempered and calibrated per door weight, size and track requirements
  • Standard springs are 10,000 cycle
  • 25k, 50k, 100k cycle springs are available with an additional cost.
  • 12 guage bearing & spring plates
  • 16 gauge torsion tube is standard, 14 gauge, 11 gauge and solid shafts are available and used when specified


  • (2) 22GA 2-1/4" galvanized steel struts come with every door, 3" when specified

Weather Seal

  • 4" bulb type bottom weather-seal is standard, 6" available at additional cost


Limited 2 year warranty against cracking, chipping and or fading of the anodized or powder coat finish; limited 1 year warranty on hardware and components.
